Product features:

1 wide voltage DC 5V 6V 9V 12V 24V 36V 48V universal,

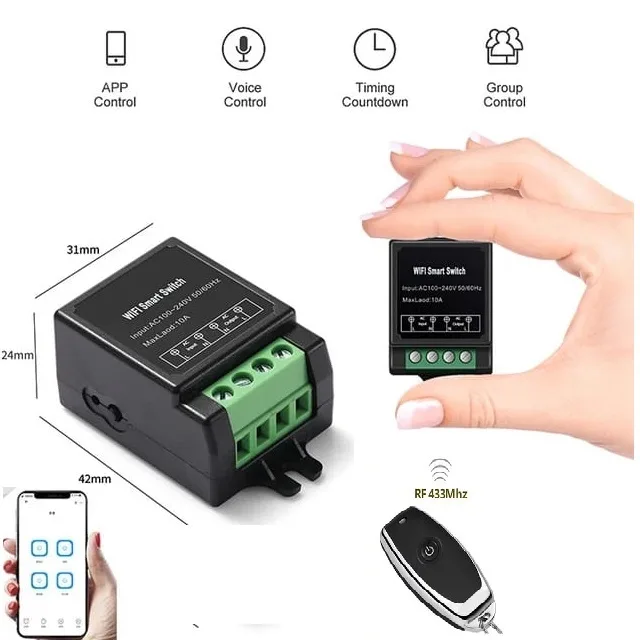

2. Small size: 42 31 24 mm.

3.Working mode support: self-locking and interlocking manual switch. (Forgetting to bring the remote control can also control on and off)

4. One receiver can pair 32 remote controls without interfering with each other

5. Convenient wiring and no need to remove the shell

6. Various combinations of working mode and remote control distance are provided

6.A variety of matching methods, a variety of remote control distance optional

Scope of application: Household lights\dc water pump\motor\Electrical appliances\ industrial control equipment, etc

Introduction to the working mode

Momentry Trigger Mode : as long as you keep pressing remote button relay remain trigger as soon as you remove hand from remote button relay got off.

Self-locking mode: with a key control, press once open, then press once off, called self-locking.

Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.

Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.

Learning methods

Self-lock: the controller is powered on, hold down the learning button and wait for 3 seconds, the indicator light will flash once, release your hand, press the button of the remote control, the indicator light will flash 3 times, indicating the success of code

Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,

release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking

Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful

Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off
