Description

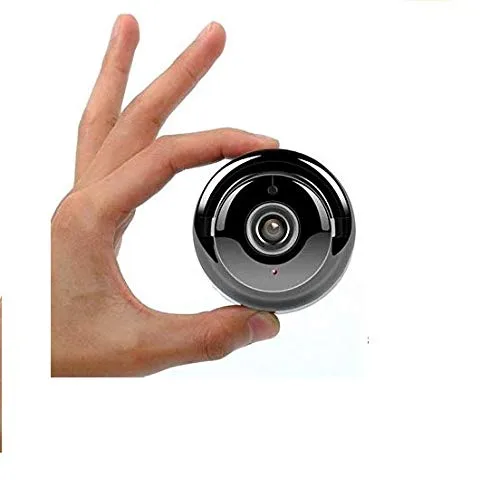

• Model: JXFEYE1802 - WiFi IP Camera
• Image Sensor: 1/3 Progressive CMOS Sensor
• Lens: 1.4mm 180° Panoremic View Lens
• Day/Night: IR-CUT Auto Switch Filter
• Image :HD
• Frame Rate : 25fps± internet adaptively adjustment
• Band Width Adjust: adjust bandwidth to minimise internet consumption while viewing live
• Setting: Brightness, Contrast, Chroma, Saturation
• Memory : Support Micro TF Card Slot (Max to 128GB, Not Included)
• Network: WIFI, 802.11 b/g/n
• Wide Angle 180 Degree - Stunning Picture with wide angle lens so cover more area Inbuilt IR - Give good night vision up to 10 feet distance
• Large Memory Support- 128GB Memory Card Supported (Memory Card Not Included) Can Record up to 30 days
• Watch Live From Any Where - Just connect to wifi Internet ( JIOFI device or Broadband Wifi) Watch live from any where in the world smoothly with less data consumption

General

• IR Light: 10Pcs IR LED
• IR Distance: 10m Night Vision
• Operation Temperature: -10°C~+50°C RH95% Max
• Power Supply: DC 5V/1A+
• Power Consumer: 3W MAX

Installing Way:

1. Fix Using Stand

2. 3M Sticker on the wall.Etc...any place you can fix the camera :)

APP Installation:

1. Downlaod "YooSee" mobile app from Playstore or Appstore and register your self

2. Plug In Camera using any mobile charger

3. You Must have Switch on WiFi Internet ( Broadband or JIOFi Device)

4. Open App Click on + Button, Touch Smart Link and Follow on Screen Instruction

Notes: Camera requires the simply 5V 2A mobile phone charger (Not Included with Camera), micro USB style. Which is very common every where. Please power the camera by the USB cable (Cable Provided ).
