GST Invoice for Business Buyer

39% OFF

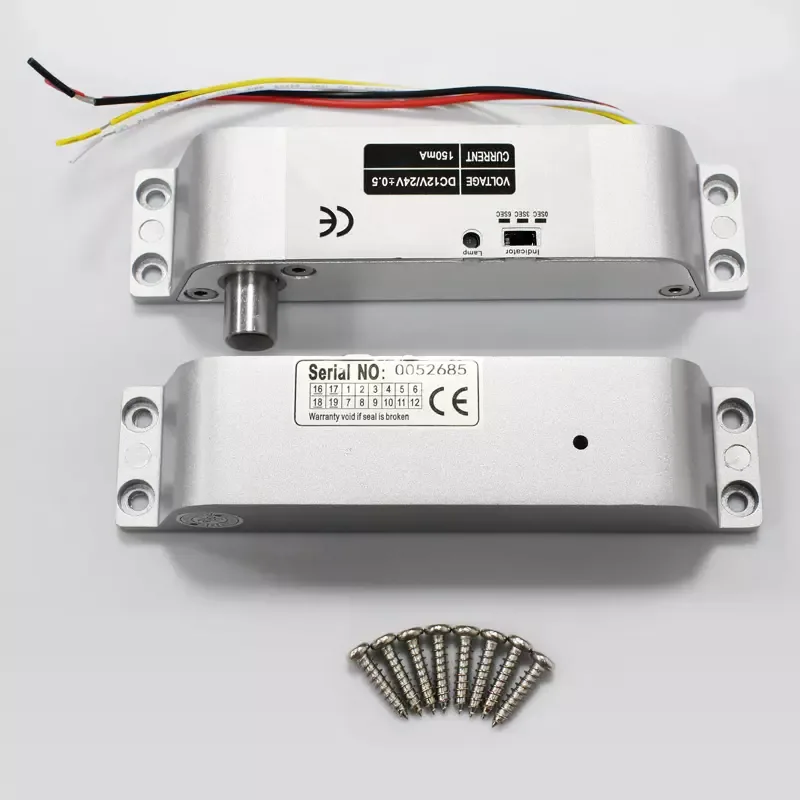

Jenix Fail Safe Electronic Drop Bolt Lock for Open Surface Metal Door Wooden Door Stone Frame Metal Frame Wooden Frame Door OSDB202

2,199 3,599
Out of stock

Product Description

Suitable for wood , Metal , Aluminum frame ( Chaukhat ) where Door any type ( Wood, Metal , Aluminum material are made) close and Open Surface of Frame and Door are used to fix this Lock .


NC mode - (locked while supplied with power), fail safe mode

Aluminum alloy material

Testing to 1000000 cycles

Low temperature, safe & durable

Door statue signal output contact(NC/COM)

Timer : 0 / 3 / 6 second

Technical Information:

Product Type: Low Temperature Electric Bolt Door Lock

Suitable For: Wooden Door, Metal Door, Fireproof Door,etc

Operating Mode: NC Fail Safe (close when powered)

Material: Aluminum alloy material

Holding Force: 800KG

Time: 0 / 3 / 6 second

Lock Core: The diameter is 12.5mm stainless core, extending the length of 15mm

Working Voltage: DC 12V

Size: approx. 149 (L) x 34 (W) x 27.5 (H) mm / 5.9 (L) x 1.4 (W) x 1.1 (H) inch

Package includes:

1 x Surface Mounted Low Temperature Electric Bolt Door Lock Holding Force 1000KG

1 x User Manual

Timer delay: 0,3s, 6s;

starting power: 1.2A;

standby power: 120mA;


Voltage:12DC, (24VDC not available)

Black wire for GND; Red wire for 12V+; white for COM, yellow for NC; blue for NO;

Remote Operated Power Supply is not included here . to buy remote operated power supply click below link

Remote Power Supply for Bolt Lock

To Buy Exit Button to open this lock from inside click on below link

Steel Exit Button to Open Electronic Lock ( COM-NO type)
