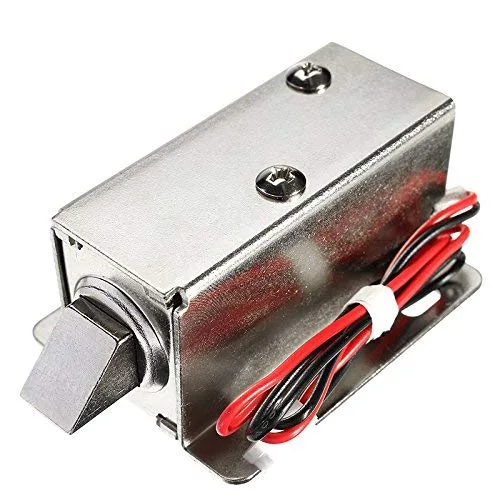

Jenix Electric Lock Solenoid Cabinet | Drawer Door Lock | 12V DC 1.1A Small Electric Lock Access Control System Mini Locks, Iron material,Silver

This 12V DC Cabinet Door Solenoid Electric Lock is a compact and durable electronic locking solution designed for vending machines, storage cabinets, file cabinets, lockers, drawers, display cabinets, smart lockers, parcel boxes and access-control projects.

The lock remains mechanically secured when power is disconnected and releases instantly when DC power is applied, making it suitable for short-duration electronic unlocking through a relay, access controller, RFID reader, fingerprint system, keypad, IoT controller or microcontroller.

Built with a strong iron body, the lock offers reliable anti-theft and shock-resistant performance while maintaining a compact 54 × 42 × 28 mm size. Its approximately 10 mm rated stroke provides positive locking action for many cabinet and enclosure applications.

The solenoid draws approximately 650 mA at 12V DC and around 500 mA at 9V DC when activated. It is designed for short activation periods of approximately 1–10 seconds, helping reduce power consumption and coil heating.

The lock includes approximately 240 mm connection wires for convenient installation.

Important: Observe correct polarity during wiring. Connect the Red wire to Positive (+) and Black wire to Negative (−).
