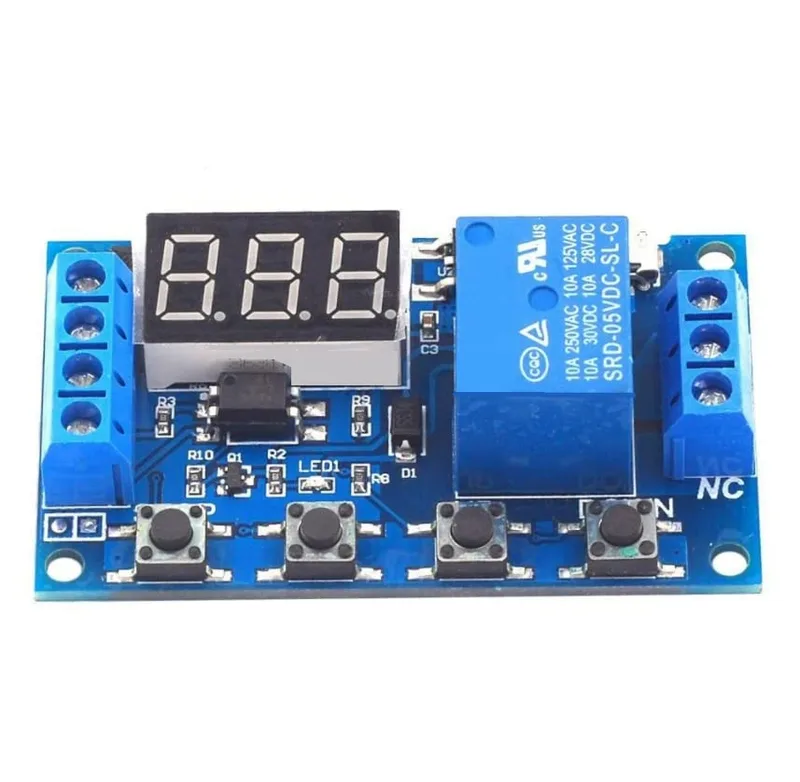

Name: Jenix 12V Delay Relay Board LED Display Automation Digital Delay Timer Control Switch Relay Module
Brand: Jain enterprises
SKU: 12V LED Relay
Price: 499 INR
Availability: InStock

Product Description

New upgrades to simplify, meeting the users' needs. Increase the power supply anti-reverse function. The use of opto isolated input and output, enhanced anti-jamming capability and consumption. The last setting parameters can be memorized after power off. Signal terminal voltage signal can be maintained for a long time.

Product Description:

Size: 62x38x17mm
Work Voltage: 6-30V support micro USB 5.0V power supply
Triger Source: High voltage level trigger ( 3.0V-24V )
Output Capability: Can control the device within DC 0-30V 5A or AC 0-220V 5A
Quiescent Current: 20mA
Work Current: 50mA
Service Life: More than 100 thousand times
Work Temperature: -40℃~ + 85℃
Main Interface: Off work status shows "000" (no decimal point ), work status has decimal point, very clear.

Parameter Specification:

OP: Turn-On Time; CL: Turn-Off Time; LOP: Cycle Index ("---" means limitless cycle ), the parameters are independent with each other, but shared by each model.
Timing setting:
After setting the parameter values in the mode selection screen by a short press STOP button, select the time range;
XXX 1 second to 999 seconds
XX.X 0.1 seconds to 99.9 seconds
X.X.X. 1 minute to 999 minutes

Work Mode:

Long press SET key to enter/quit mode selection screen.
Relays Enable Mode:
In the main interface, short press the STOP button to switch between ON and OFF.
Sleep Mode:
Long press STOP button for two seconds then release, to switch C-l and O-d state.

Note: For details, please refer to the product picture
