The Jenix Photoelectric Infrared Beam Sensor is designed for perimeter security in homes, factories, warehouses, farms, parking areas and commercial properties.

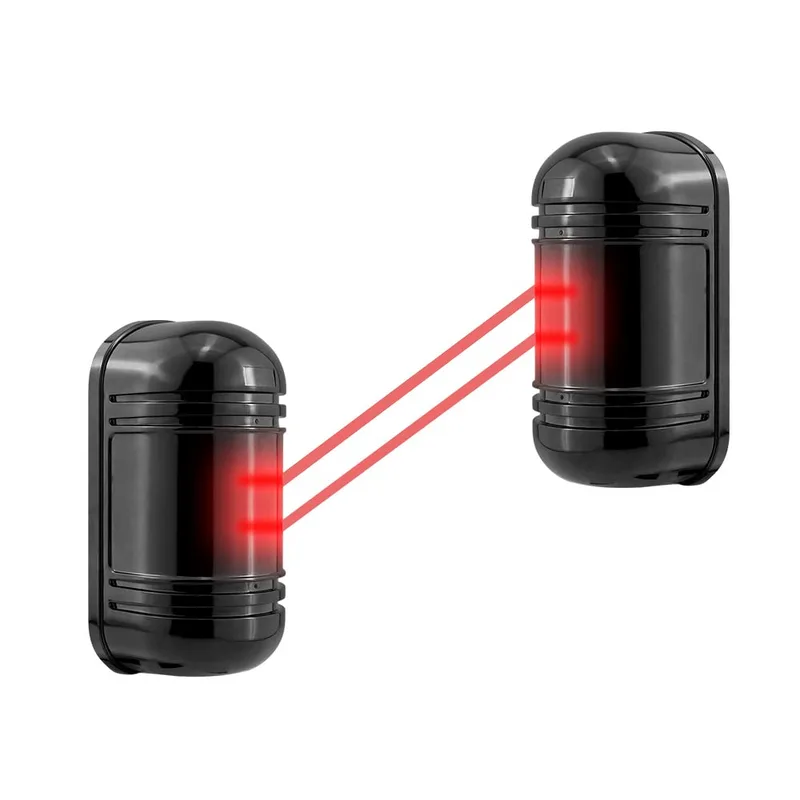

The system includes a separate infrared transmitter and receiver. When installed facing each other, they create an invisible security beam. If a person or object passes through and interrupts the beam, the sensor sends an alarm signal to a compatible security alarm panel.

How It Works

The transmitter sends infrared beams to the receiver continuously. When both units are correctly aligned, the security zone remains active.

If someone crosses the protected area or blocks the beams, the sensor triggers its alarm output. A connected Jenix security alarm panel can then activate a siren or send an alert through a mobile application, phone call or SMS, depending on the features of the alarm panel.

Security alarm panel is not included with this sensor.

Twin-Beam Detection

The sensor uses twin infrared beams to improve detection reliability. Both beams must normally be interrupted together before an alarm is triggered.

This helps reduce false alarms caused by:

Falling leaves
Small birds
Insects
Light outdoor movement
Minor environmental disturbances

Digital Frequency Conversion

Digital frequency conversion helps improve signal stability and reduces interference from nearby infrared beam sensors. This makes the product suitable for installations where multiple beam sensors may be used in the same area.

Detection Range

Maximum outdoor range: Up to 100 meters
Maximum indoor range: Up to 300 meters

The actual detection distance may vary depending on alignment, weather, installation height and surrounding conditions.

Weather-Resistant Construction

The sensor features a polished PC enclosure designed to resist dew and frost. Its weather-resistant construction helps maintain operation in outdoor environments, including foggy or humid conditions.

Suitable Applications

The Jenix infrared beam sensor can be used for:

Boundary-wall protection
Main gate security
Factory and warehouse perimeters
Farm and open-land security
Parking areas
Residential societies
Commercial properties
Rooftop security
Restricted areas
Construction sites

Package Contents

1 × Infrared beam transmitter
1 × Infrared beam receiver

Important Note

This product is a beam sensor only. A compatible security alarm panel, power supply, siren and communication module may be required separately.

For reliable operation, the transmitter and receiver must be mounted securely at the same height and accurately aligned.

Jenix Double Beam IR Sensor 300m Indoor 100 Meter Outdoor IR Infrared Beam Detector for Home Villa, Farm House, Factory, Fencing Boundary Wall I IR Waterproof Sensor Burglar Alarm Security System
